Description

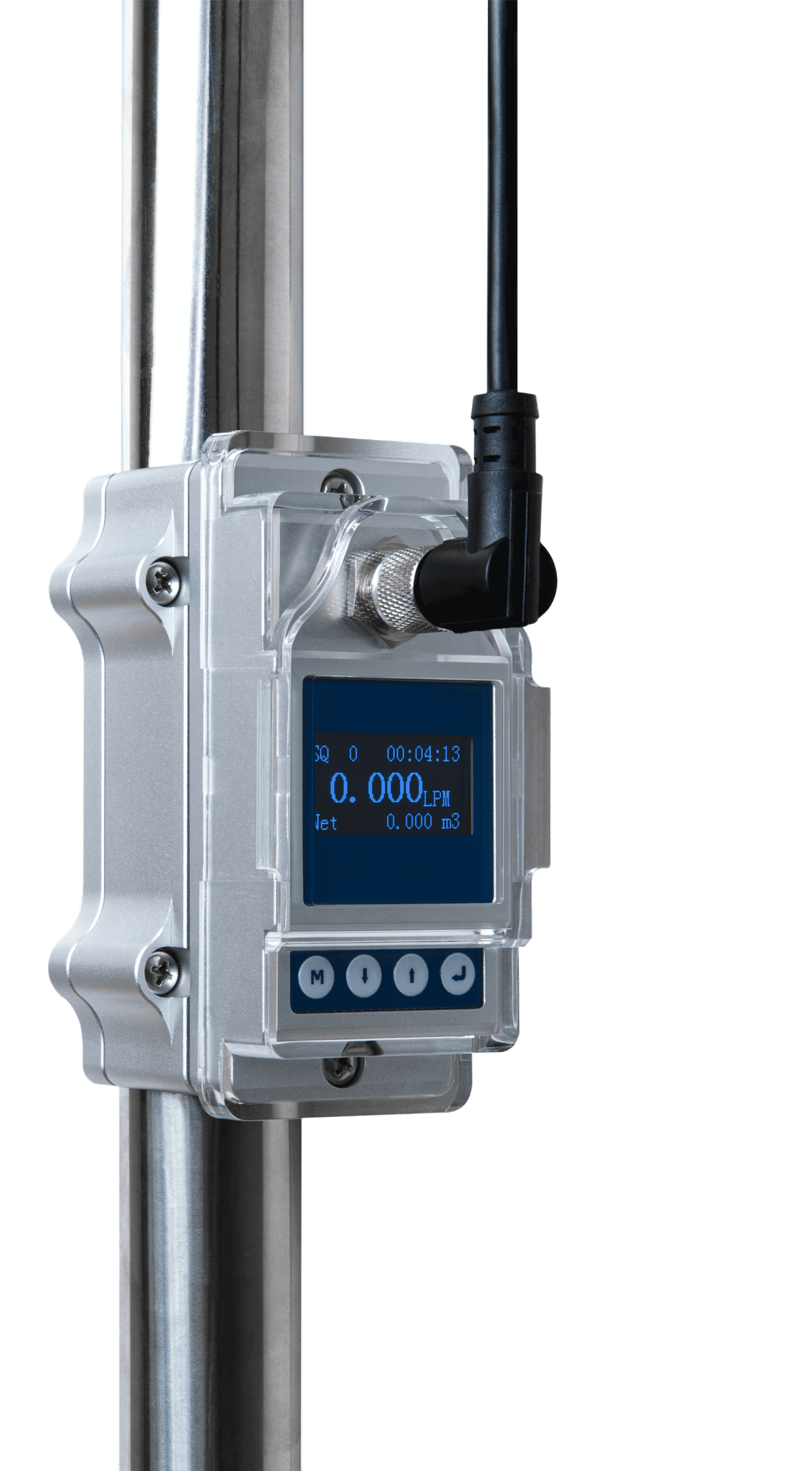

The YF-C3 is an ultra-compact clamp-on ultrasonic flow meter built around one idea: make measurement easy. Its patented magnetic snap-on bracket is pre-assembled at the factory — just place the unit on the pipe and the clamps self-align and lock magnetically, then tighten four M4 screws. No tools, no coupling mess, no pipe cutting — installation in minutes.
Designed for small to medium pipes (OD 9–277 mm, DN6–DN100+), the YF-C3 is available as an integrated clamp-on unit or a split (remote) version, with standard aluminium-alloy or PTFE-coated anti-corrosion housings, and medium-temperature options up to 120 °C.
Key Features
- Magnetic snap-on bracket — tool-free, self-aligning installation
- Small-pipe specialist: OD 9–277 mm (DN6–DN100+)
- Integrated clamp-on or split (remote) configuration
- 4–20 mA, RS485 (Modbus) and OCT outputs
- Aluminium-alloy or PTFE-coated anti-corrosion housing
- Standard (70 °C) and high-temperature (120 °C) transducer options
- Non-contact, no pressure drop, no moving parts
Specifications
| Product Name | Clamp On Ultrasonic Flow Meter |
| Accuracy | ±2.0% (0.5m/s – 5.0m/s) |
| Flow range | 0.1m/s – 5.0m/s |
| Pipe Diameter Range | OD:9mm – 277mm (including 18 specifications) See Page 19 for details |
| Linearity | ±2.0% (0.5m/s – 5.0m/s) |
| Repeatability | 0.80% |
| Response Time | 500ms |
| Display screen | 1.3″ 128*64 OLED Display supports forward/reverse rotation (easy to read) |
| Menu Language | English |
| Display unit | Metric and Imperial units are available, m³/h、LPM、GPM、L/s、LPH (Default unit: m³/h) |
| Display data | Flow rate、 Flow velocity、 Net totalizer、 Single totalizer、 Day-Month-Year totalizer |
| Totalizer Digit Cap. | 7-digit totalizer |
| Cumul. Data Period | 10 years, 64 months, 64 days |
| Keypad | 4 touch keys |
| Calendar battery | CR1220 |
| Power supply | 24VDC@3W |
| Analog output | 4-20mA (Maximum load 600Ω) |
| Communication output | RS485 (Support Modbus RTU Communication output protocol) |
| Signal output | Flow rate alarm、Totalized pulse etc. (Optional) |
| IP Rating | IP54 |
| Ambient Humidity | 0% – 95% relative humidity, Non-condensing |
Full accuracy and electrical specifications vary by configuration and are confirmed with your quotation.
Applications
Small-bore process lines, water treatment and purification, chemical dosing, cooling water, HVAC, OEM equipment integration, and any tight space where a conventional meter cannot be installed.
Wholesale & OEM
YS-Flux supplies ultrasonic flow meters in volume for export and wholesale distribution, and provides complete OEM / private-label manufacturing: custom logo and branding, neutral or customized packaging and color boxes, tailored manuals and labeling, and configurable specifications to match your market. Distributors and brand owners are welcome to request a quote for bulk pricing and OEM options — see our OEM services.
Request a Quote
This is an inquiry-based (RFQ) product. Tell us your pipe size, fluid, temperature, required outputs and quantity, and our engineers will recommend the right configuration. Request a Quote →
