Portable · Clamp-on · No pipe cutting · 12-hour battery

Measure flow anywhere in minutes — then pack it away

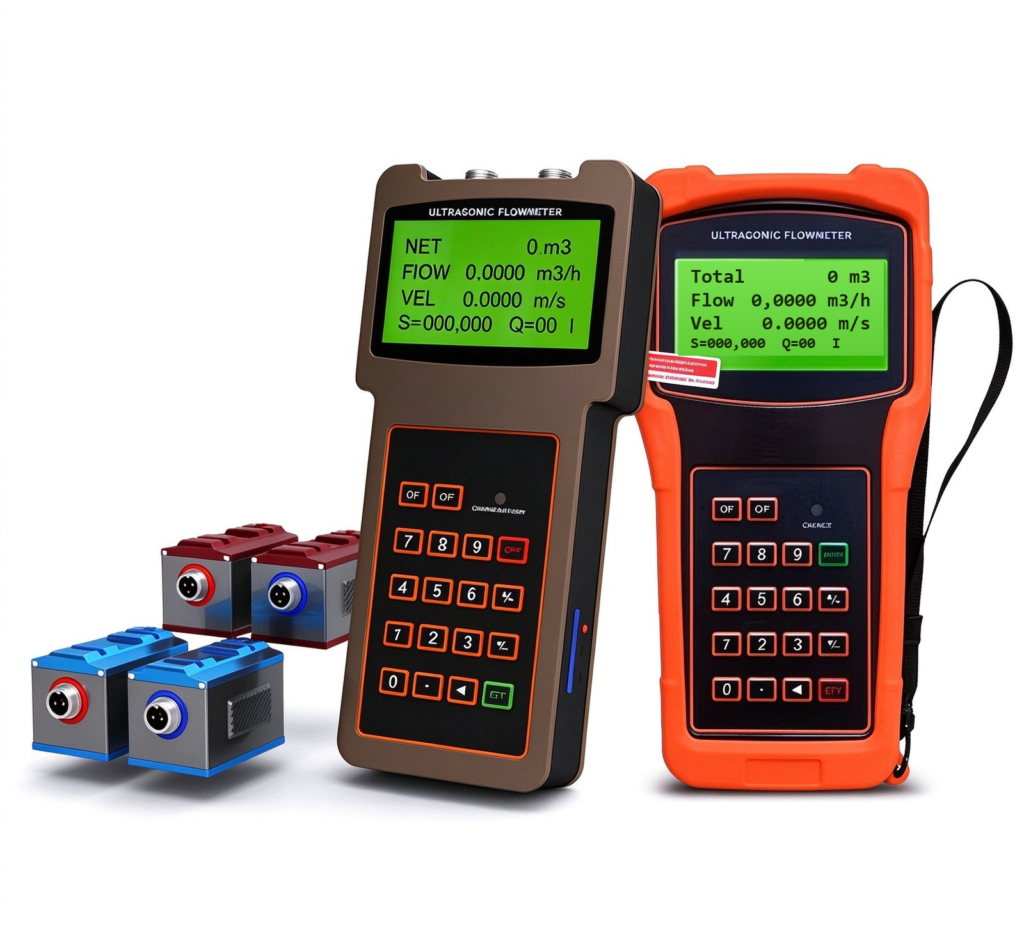

The YF-W200H Handheld Ultrasonic Flow Meter is a battery-powered transit-time meter for temporary surveys, spot-checks, pump testing, balancing and commissioning. Clamp the transducers onto the outside of the pipe — no cutting, no shutdown, no pressure drop — and read flow instantly on the backlit LCD. The full kit ships in an aluminum-alloy carrying case.

Request a Quote →
💬 WhatsApp an Engineer

Wholesale & OEM welcome · Reply in English · Tell us your pipe size, fluid and quantity

🏭Factory-direct supplyManufacturer pricing, not a trader

🌐Worldwide distributorsBuilt for export and resale

🏷️OEM / private labelLogo, packaging, manuals

🧰Full field kitTransducers, cables, case included

Who uses the YF-W200H?

🔫 Field & service engineers
Quickly verify flow on site without touching the process.

🏗️ HVAC & heating teams
Balance chilled / hot water loops and commission systems.

💧 Water & wastewater plants
Spot-check lines, audit pumps and validate meters.

🧰 Distributors & rental fleets
Resell or rent a rugged, reusable portable meter — OEM branding available.

⚛️ Petrochem, power & metallurgy
Measure water, oil and chemicals on carbon steel, PVC, cast iron and lined pipes.

📊 Energy auditors & contractors
Log instantaneous and totalized flow, then export data for reports.

Why buyers choose it

±1% accuracy — 0.5% linearity, 0.2% repeatability
DN15 to DN6000 — several clamp-on and bracket transducers for almost any pipe
-30 to 160 °C — high-temperature transducers for hot lines
12+ hour battery — built-in rechargeable Ni-MH, plus an AC adapter
Non-intrusive — magnetic clamp-on, zero pressure loss, no disturbance
Built-in data logger — 2,000+ lines, transferred to a PC for statistics and printed reports
Clear multilingual LCD — instantaneous and accumulated flow (positive, negative, net), velocity and status; Chinese / English / Italian menu
RS232 interface — isolated serial link for data and firmware upgrades

What arrives in the case

Handheld converter (ABS, with LCD and keypad)
TM-1 medium clamp-on transducers ×2 (small/large/high-temp optional)
5 m transducer cables ×2 (other lengths to order)
Mounting rail / stretcher and couplant
Ruler, AC adapter and aluminum-alloy carrying case

Specifications

Principle	Transit-time ultrasonic flow meter
Accuracy	±1%
Linearity	0.5%
Repeatability	0.2%
Pipe diameter	DN15 ~ DN6000 mm
Flow velocity	0 ~ ±10 m/s
Pipe materials	Steel, stainless steel, cast iron, copper, cement, PVC, aluminum, fiberglass; lined pipes allowed
Liquid temperature	-30 ~ 160 °C
Turbidity	Up to 10,000 ppm, few bubbles
Straight pipe	Upstream 10D, downstream 5D, 30D from the pump
Liquids	Hot/chilled/city/sea/waste water, low-particle sewage, crude/lube/diesel/fuel oil, chemicals such as alcohol, plant effluent, beverage, ultra-pure liquids
Working temperature	Converter -20 ~ 60 °C; transducer -30 ~ 160 °C
Humidity / protection	Converter 85% RH; transducer IP67
Power	3 × AAA 1.2 V Ni-MH (12+ h); 90-260 V AC adapter
Power consumption	1.5 W
Display	4×16 backlit LCD; Chinese / English / Italian menu
Data	Isolated RS232; built-in logger, 2,000+ lines
Converter	ABS, 200 × 93 × 32 mm

Transducer selection

Type	Model	Pipe range	Temperature
Clamp-on, small	TS-2	DN15 ~ DN100	-30 ~ 90 °C
Clamp-on, medium	TM-1	DN50 ~ DN700	-30 ~ 90 °C
Clamp-on, large	TL-1	DN300 ~ DN6000	-30 ~ 90 °C
Clamp-on, high temp	TS-2-HT / TM-1-HT / TL-1-HT	same ranges	-30 ~ 160 °C
Bracket, small	HS	DN15 ~ DN100	-30 ~ 90 °C · 318×59×85 mm
Bracket, medium	HM	DN50 ~ DN300	-30 ~ 90 °C · 568×59×85 mm
Bracket, extended	EB-1	DN300 ~ DN700	-30 ~ 90 °C · 188×59×49 mm
Bracket, high temp	HS-HT / HM-HT / EB-1-HT	same ranges by size	-30 ~ 160 °C

Standard kit: converter + TM-1 transducer + 5 m cable ×2 + mounting rail + couplant + aluminum carrying case + ruler. Choose cable length when ordering (e.g. +HM+ 10 m). Not sure which transducer fits your pipe? Send the diameter and fluid — our engineers select it for you.

Get your quote in 3 steps

1 — Send your details
Pipe DN/OD and material, fluid, temperature and quantity.

2 — We configure it
Our engineers pick the right transducer, cable length and options.

3 — Receive your quote
Factory-direct wholesale/OEM pricing, lead time and shipping — in English.

✅ Tip: paste this in your message — “Pipe DN__ / material__, fluid __, __°C, velocity ~__, quantity __, need OEM: yes/no” — and we can quote faster. Unsure of any value? Just leave it out and ask.

Industries & liquids

Petrochemical, electric power, heating, water supply and drainage, energy-saving projects and metallurgy. Works with ultra-pure and potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, oils and beverages.

Wholesale, distribution & OEM

YS-Flux manufactures handheld ultrasonic meters for export, distributors and private-label brands, with reliable repeatable supply and export documentation. OEM options include your logo on the housing and labels, brand colours and model naming, neutral or custom colour-box packaging, printed manuals and datasheets, and configurable transducer / temperature options. MOQ-friendly wholesale — share your estimated volume and target market and we will tailor a program. See OEM services.

Frequently asked questions

Is the YF-W200H truly non-intrusive?

Yes. The transducers clamp magnetically onto the outside of the pipe, so there is no pressure drop, no pipe cutting and no process shutdown.

Which transducer do I need?

It depends on pipe size and temperature: TS-2 for DN15-100, TM-1 for DN50-700, TL-1 for DN300-6000, and HT versions above 90 C. Send us your pipe diameter, material and fluid and our engineers select and quote the correct one.

How long does the battery last?

The built-in rechargeable Ni-MH battery gives over 12 hours of continuous operation; an AC adapter is included for mains power and charging.

Can I record and export measurements?

Yes. The built-in logger stores over 2,000 lines of data, which can be transferred over the isolated RS232 interface to a computer for statistics, curves and printed reports.

Do you support OEM or private label, and is there an MOQ?

Yes. Logo, labels, model naming, custom packaging and manuals are available, with MOQ-friendly wholesale. Tell us your estimated volume and market and we will propose a tailored program.

Can I buy one unit to evaluate, or for rental use?

The handheld kit is well suited to evaluation and rental fleets. Send your requirements through the RFQ form or WhatsApp and we will confirm configuration and pricing.

Tell us about your application

Pipe size, fluid, temperature and quantity — that is usually all we need to recommend a configuration and send factory-direct pricing.

Request a Quote →
💬 WhatsApp Us

Email: sales@yeshi-flowmeter.com · WhatsApp: +86-13425118418 · Export team replies in English

Related Products

View all models on our Products page, or contact us for selection assistance.

{“@context”: “https://schema.org”, “@type”: “Product”, “name”: “Handheld Ultrasonic Flow Meter | Portable Clamp-on Model YF-W200H”, “description”: “YF-W200H handheld ultrasonic flow meter with 12+ hour battery. DN15-DN6000, built-in data logger, RS232. For anywhere field surveys and spot checks.”, “brand”: {“@type”: “Brand”, “name”: “Yeshi Flowmeter”}, “manufacturer”: {“@type”: “Organization”, “name”: “Yeshi Flowmeter”, “url”: “https://yeshi-flowmeter.com”}, “url”: “https://yeshi-flowmeter.com/product/portable-handheld-flow-meter-model-yf-w200h/”, “category”: “Ultrasonic Flow Meters”}

Portable Ultrasonic Flow Meter

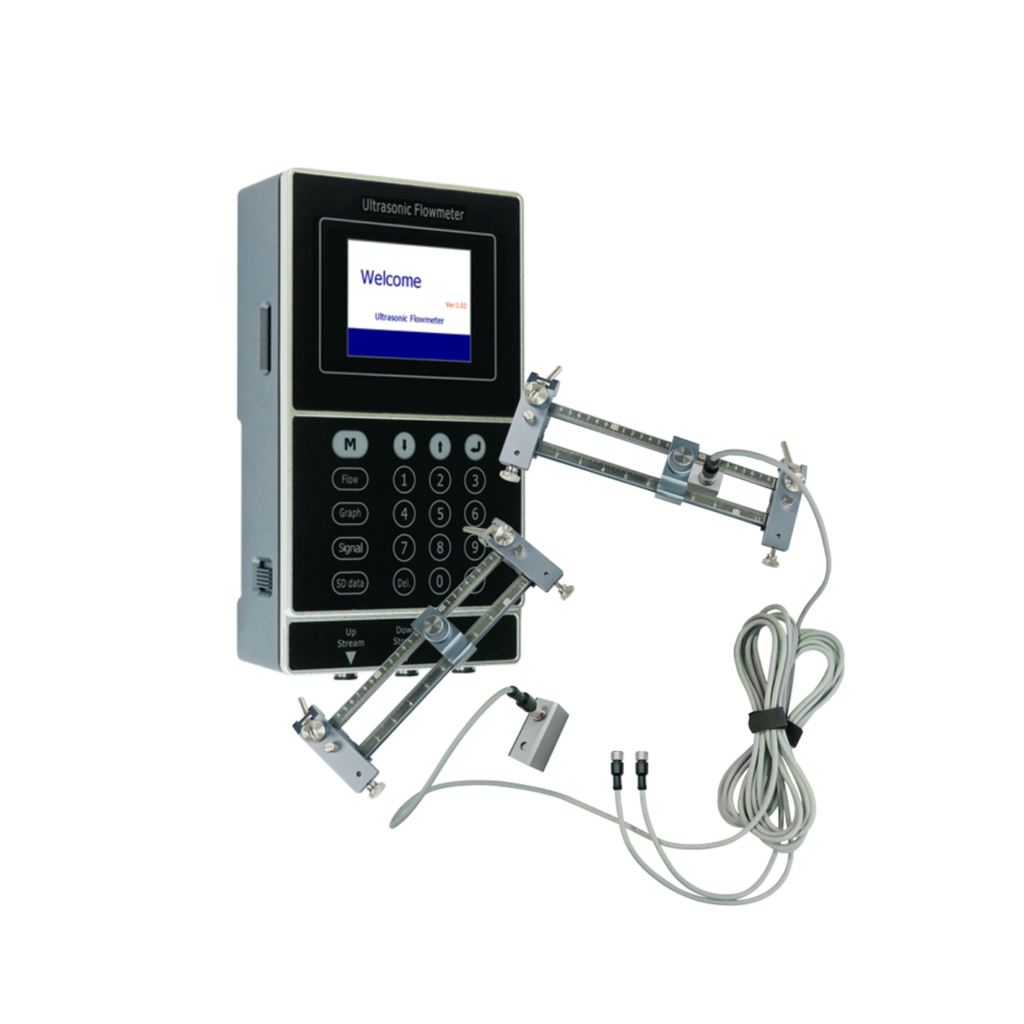

YF-P1 Portable Ultrasonic Flow Meter

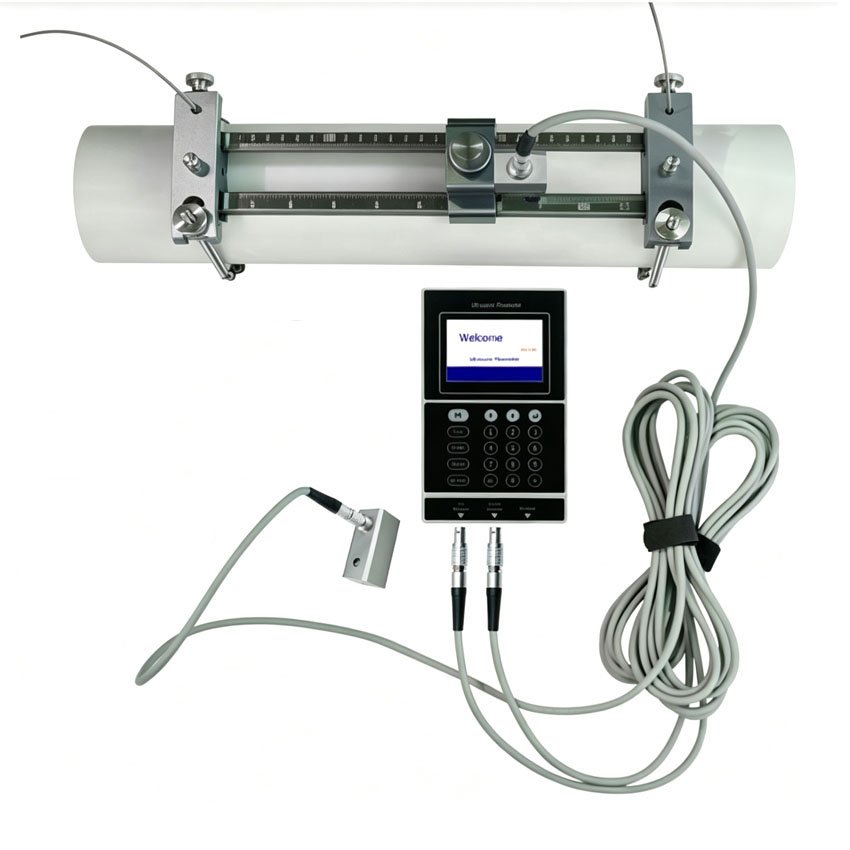

YF-P2 Portable Ultrasonic Flow Meter
