Description
Portable · Clamp-on · No pipe cutting · 12-hour battery
Measure flow anywhere in minutes — then pack it away

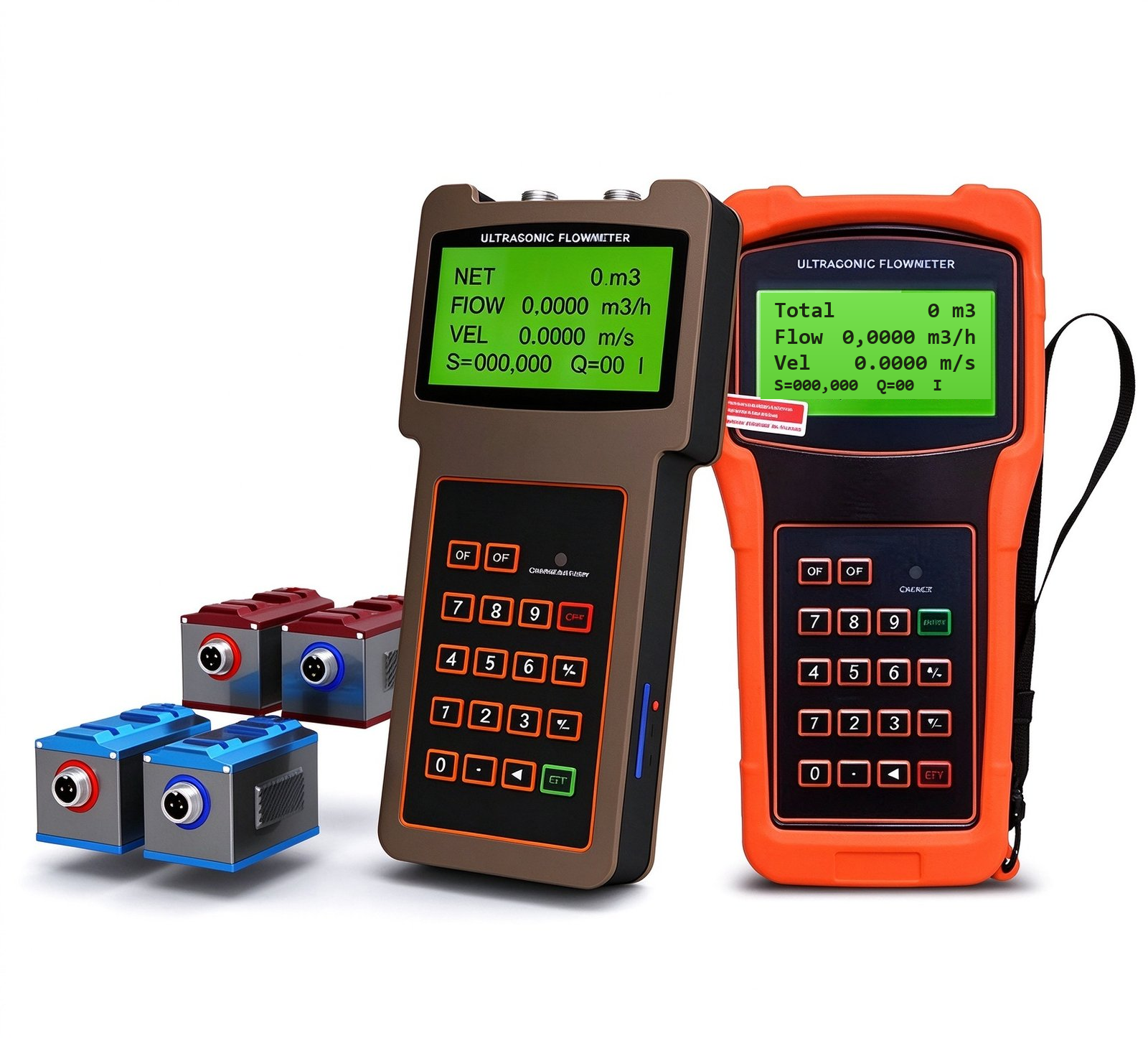

The YF-W200H Handheld Ultrasonic Flow Meter is a battery-powered transit-time meter for temporary surveys, spot-checks, pump testing, balancing and commissioning. Clamp the transducers onto the outside of the pipe — no cutting, no shutdown, no pressure drop — and read flow instantly on the backlit LCD. The full kit ships in an aluminum-alloy carrying case.
Request a Quote →
💬 WhatsApp an Engineer
Wholesale & OEM welcome · Reply in English · Tell us your pipe size, fluid and quantity
Who uses the YF-W200H?
Quickly verify flow on site without touching the process.
Balance chilled / hot water loops and commission systems.
Spot-check lines, audit pumps and validate meters.
Resell or rent a rugged, reusable portable meter — OEM branding available.
Measure water, oil and chemicals on carbon steel, PVC, cast iron and lined pipes.
Log instantaneous and totalized flow, then export data for reports.
Why buyers choose it
- ±1% accuracy — 0.5% linearity, 0.2% repeatability
- DN15 to DN6000 — several clamp-on and bracket transducers for almost any pipe
- -30 to 160 °C — high-temperature transducers for hot lines
- 12+ hour battery — built-in rechargeable Ni-MH, plus an AC adapter
- Non-intrusive — magnetic clamp-on, zero pressure loss, no disturbance
- Built-in data logger — 2,000+ lines, transferred to a PC for statistics and printed reports
- Clear multilingual LCD — instantaneous and accumulated flow (positive, negative, net), velocity and status; Chinese / English / Italian menu

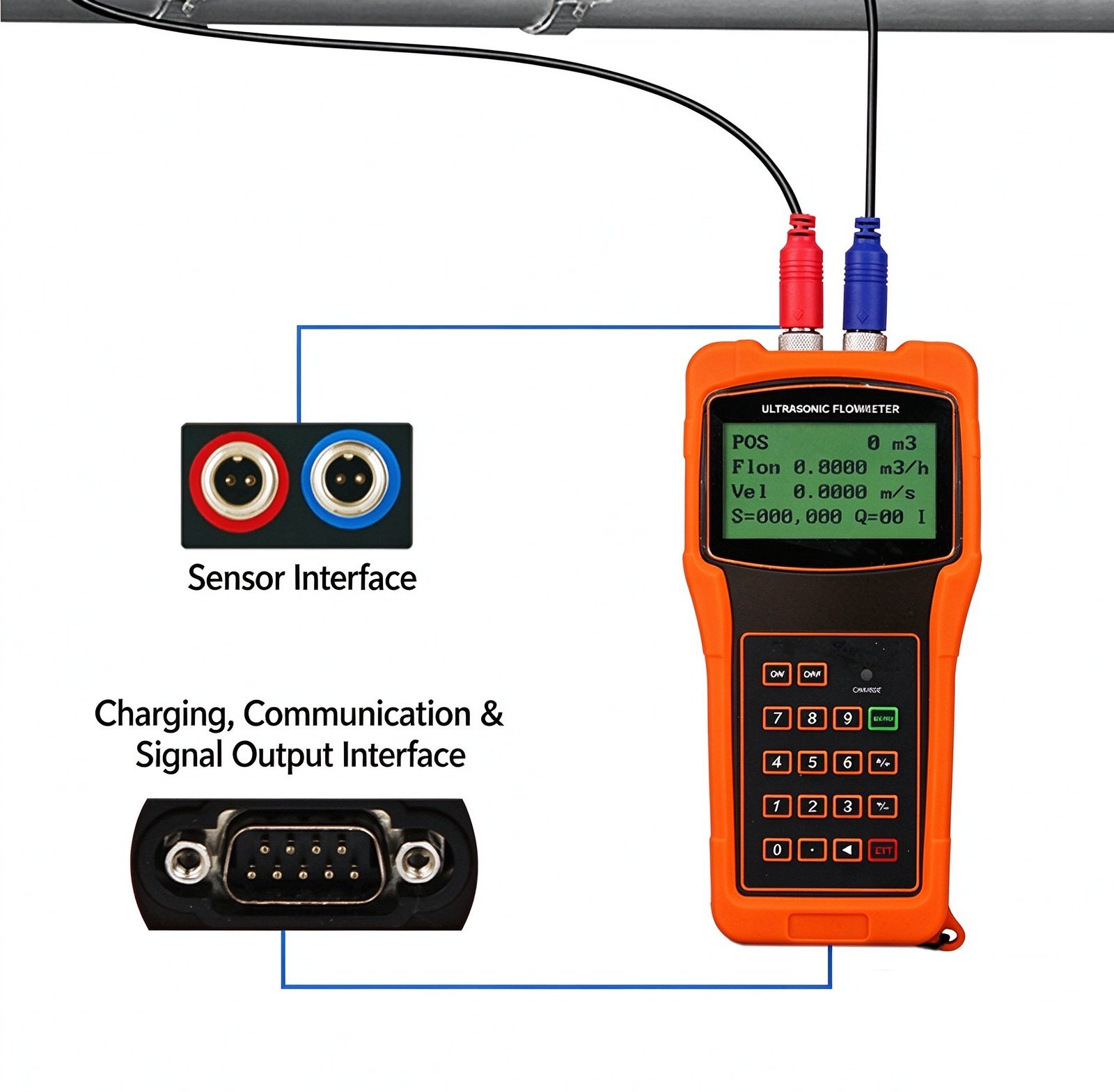

- RS232 interface — isolated serial link for data and firmware upgrades

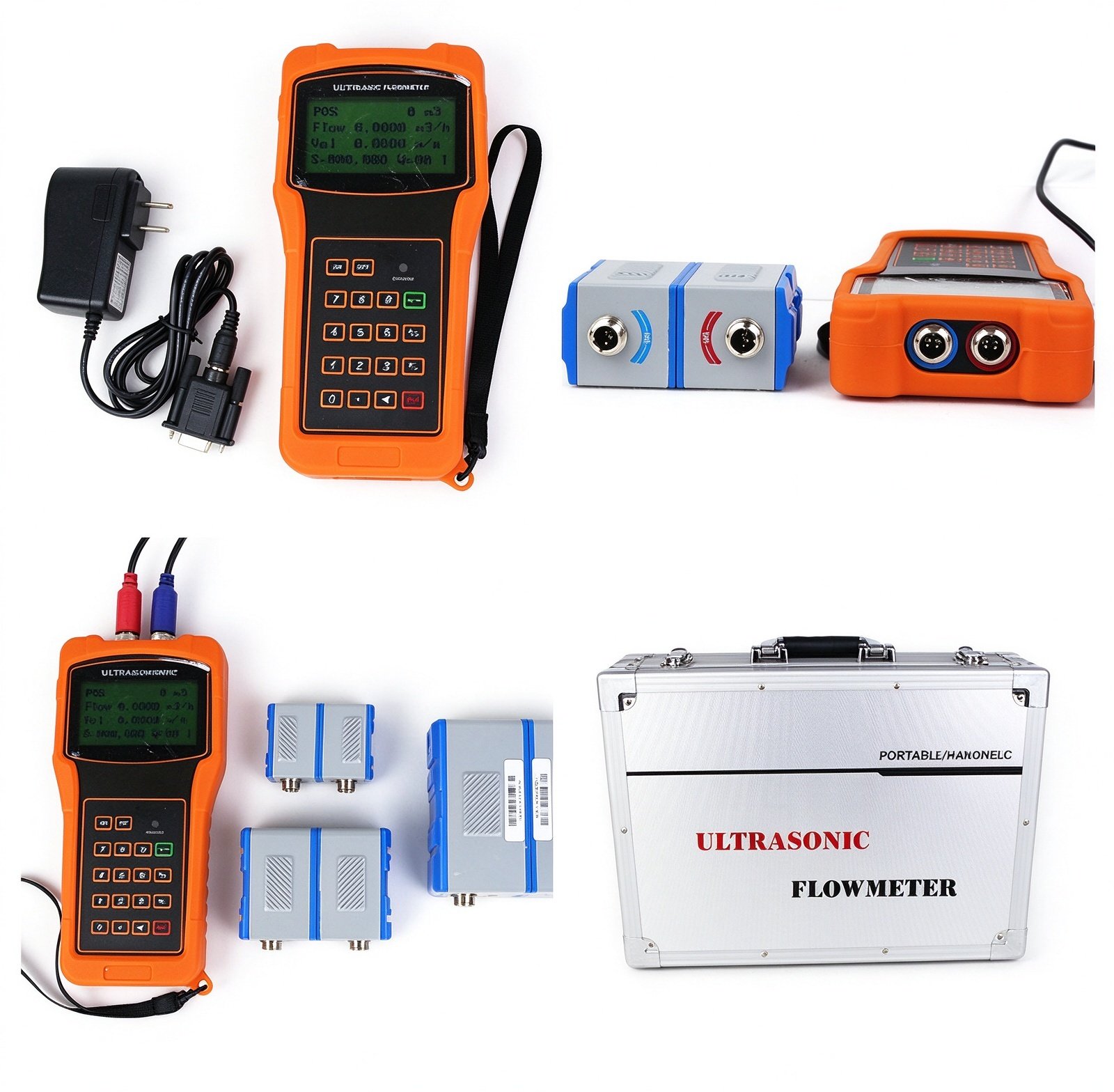

What arrives in the case
- Handheld converter (ABS, with LCD and keypad)
- TM-1 medium clamp-on transducers ×2 (small/large/high-temp optional)
- 5 m transducer cables ×2 (other lengths to order)
- Mounting rail / stretcher and couplant
- Ruler, AC adapter and aluminum-alloy carrying case
Specifications
| Principle | Transit-time ultrasonic flow meter |
|---|---|
| Accuracy | ±1% |
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Pipe diameter | DN15 ~ DN6000 mm |
| Flow velocity | 0 ~ ±10 m/s |
| Pipe materials | Steel, stainless steel, cast iron, copper, cement, PVC, aluminum, fiberglass; lined pipes allowed |
| Liquid temperature | -30 ~ 160 °C |
| Turbidity | Up to 10,000 ppm, few bubbles |
| Straight pipe | Upstream 10D, downstream 5D, 30D from the pump |
| Liquids | Hot/chilled/city/sea/waste water, low-particle sewage, crude/lube/diesel/fuel oil, chemicals such as alcohol, plant effluent, beverage, ultra-pure liquids |
| Working temperature | Converter -20 ~ 60 °C; transducer -30 ~ 160 °C |
| Humidity / protection | Converter 85% RH; transducer IP67 |
| Power | 3 × AAA 1.2 V Ni-MH (12+ h); 90-260 V AC adapter |
| Power consumption | 1.5 W |
| Display | 4×16 backlit LCD; Chinese / English / Italian menu |
| Data | Isolated RS232; built-in logger, 2,000+ lines |
| Converter | ABS, 200 × 93 × 32 mm |
Transducer selection
| Type | Model | Pipe range | Temperature |
|---|---|---|---|
| Clamp-on, small | TS-2 | DN15 ~ DN100 | -30 ~ 90 °C |
| Clamp-on, medium | TM-1 | DN50 ~ DN700 | -30 ~ 90 °C |
| Clamp-on, large | TL-1 | DN300 ~ DN6000 | -30 ~ 90 °C |
| Clamp-on, high temp | TS-2-HT / TM-1-HT / TL-1-HT | same ranges | -30 ~ 160 °C |
| Bracket, small | HS | DN15 ~ DN100 | -30 ~ 90 °C · 318×59×85 mm |
| Bracket, medium | HM | DN50 ~ DN300 | -30 ~ 90 °C · 568×59×85 mm |
| Bracket, extended | EB-1 | DN300 ~ DN700 | -30 ~ 90 °C · 188×59×49 mm |
| Bracket, high temp | HS-HT / HM-HT / EB-1-HT | same ranges by size | -30 ~ 160 °C |
Standard kit: converter + TM-1 transducer + 5 m cable ×2 + mounting rail + couplant + aluminum carrying case + ruler. Choose cable length when ordering (e.g. +HM+ 10 m). Not sure which transducer fits your pipe? Send the diameter and fluid — our engineers select it for you.
Get your quote in 3 steps
Pipe DN/OD and material, fluid, temperature and quantity.
Our engineers pick the right transducer, cable length and options.
Factory-direct wholesale/OEM pricing, lead time and shipping — in English.
✅ Tip: paste this in your message — “Pipe DN__ / material__, fluid __, __°C, velocity ~__, quantity __, need OEM: yes/no” — and we can quote faster. Unsure of any value? Just leave it out and ask.
Industries & liquids
Petrochemical, electric power, heating, water supply and drainage, energy-saving projects and metallurgy. Works with ultra-pure and potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, oils and beverages.
Wholesale, distribution & OEM
YS-Flux manufactures handheld ultrasonic meters for export, distributors and private-label brands, with reliable repeatable supply and export documentation. OEM options include your logo on the housing and labels, brand colours and model naming, neutral or custom colour-box packaging, printed manuals and datasheets, and configurable transducer / temperature options. MOQ-friendly wholesale — share your estimated volume and target market and we will tailor a program. See OEM services.
Frequently asked questions
Is the YF-W200H truly non-intrusive?
Yes. The transducers clamp magnetically onto the outside of the pipe, so there is no pressure drop, no pipe cutting and no process shutdown.
Which transducer do I need?
It depends on pipe size and temperature: TS-2 for DN15-100, TM-1 for DN50-700, TL-1 for DN300-6000, and HT versions above 90 C. Send us your pipe diameter, material and fluid and our engineers select and quote the correct one.
How long does the battery last?
The built-in rechargeable Ni-MH battery gives over 12 hours of continuous operation; an AC adapter is included for mains power and charging.
Can I record and export measurements?
Yes. The built-in logger stores over 2,000 lines of data, which can be transferred over the isolated RS232 interface to a computer for statistics, curves and printed reports.
Do you support OEM or private label, and is there an MOQ?
Yes. Logo, labels, model naming, custom packaging and manuals are available, with MOQ-friendly wholesale. Tell us your estimated volume and market and we will propose a tailored program.
Can I buy one unit to evaluate, or for rental use?
The handheld kit is well suited to evaluation and rental fleets. Send your requirements through the RFQ form or WhatsApp and we will confirm configuration and pricing.
Tell us about your application
Pipe size, fluid, temperature and quantity — that is usually all we need to recommend a configuration and send factory-direct pricing.
Request a Quote →
💬 WhatsApp Us
Email: sales@yeshi-flowmeter.com · WhatsApp: +86-13425118418 · Export team replies in English
