Description
Looking for a battery-powered handheld unit? See also the YF-P1 Portable Ultrasonic Flow Meter.

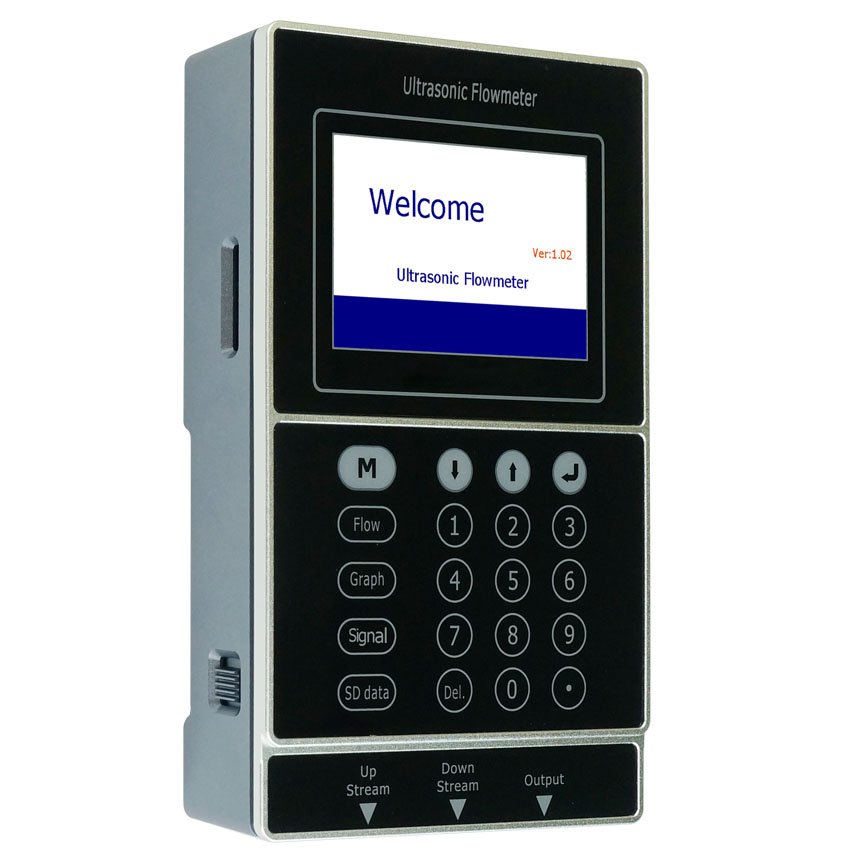

The YF-P2 is a high-accuracy portable clamp-on ultrasonic flow meter for temporary measurement, field surveys, pump testing, HVAC balancing and flow verification. Clamp the transducers onto the outside of the pipe — no cutting, no downtime, no pressure loss — and carry the unit from site to site in its case.
It delivers ±0.5% accuracy over a wide 0.1–12.0 m/s velocity range and works on pipes from DN25 to DN5000 (1″–200″) using V and N mounting methods. The 3.5″ 480×320 IPS display rotates 360° for easy reading in any position, and outputs include 4–20 mA, RS485 Modbus RTU and OCT pulse/alarm.
Key Features
- Fully portable clamp-on meter — no process interruption
- High ±0.5% accuracy (0.5–5.0 m/s), 0.15% repeatability
- Wide velocity range 0.1–12.0 m/s
- Pipe range DN25–DN5000 (1″–200″)
- V and N transducer mounting for small to large lines

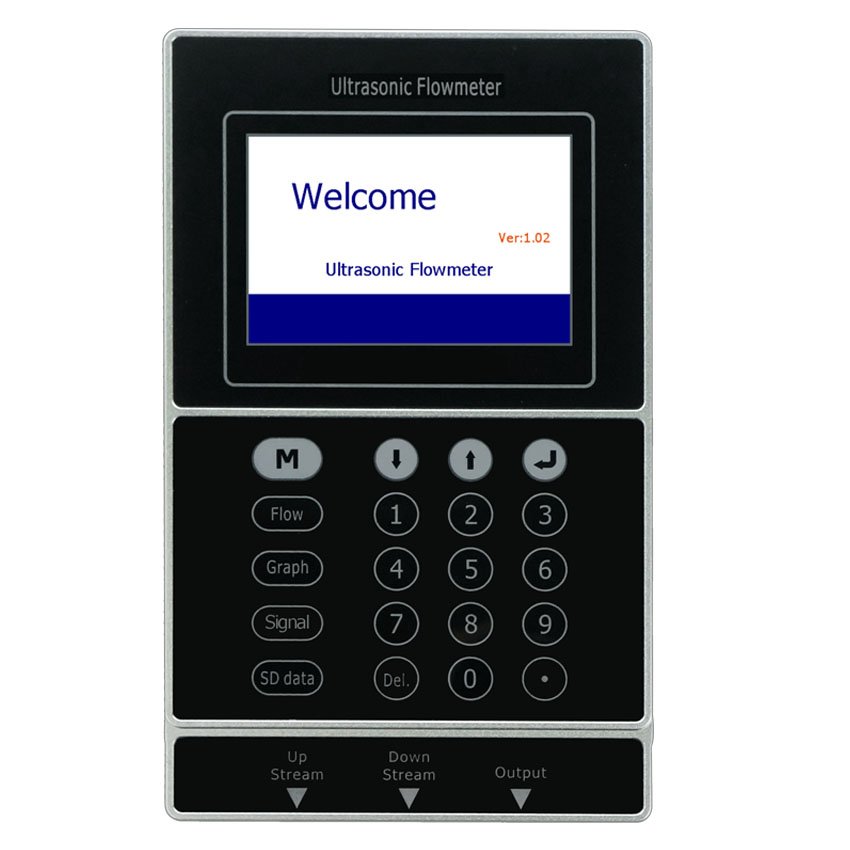

- 3.5″ 480×320 IPS LCD, 360° rotatable for easy reading
- 4–20 mA analog output, RS485 Modbus RTU, OCT pulse & alarm
- SD-card data logging; multi-language menu (English / Chinese)
- Aluminium-alloy housing; unit IP54, transducer IP68
- Transducer cable 5 m standard, extendable to 20 m
Specifications
| Principle | Transit-time ultrasonic, portable clamp-on |
|---|---|
| Accuracy | ±0.5% (0.5–5.0 m/s) |
| Linearity / Repeatability | ±0.5% / 0.15% |
| Flow velocity range | 0.1–12.0 m/s (response 500 ms) |
| Pipe diameter | DN25–DN5000 (1″–200″) |
| Mounting methods | V method and N method (clamp-on) |
| Display | 3.5″ 480×320 IPS LCD, 360° rotatable, 10-digit |
| Communication | RS485, Modbus RTU protocol |
| Analog output | 4–20 mA (max load 600 Ω) |
| Pulse / alarm | OCT pulse output, upper/lower-limit alarm |
| Relay output | 30 VDC @ 1 A, switching frequency < 2 Hz |
| Power supply | 24 VDC @ 5 W (optional external 220 VAC converter) |
| Backup battery | CR1220 calendar battery |
| Data storage | SD-card logging; 10-year / 64-month / 64-day totalizers |
| Medium | Water, chemical solvents (particles < 4%), viscosity < 100 cSt |
| Ambient temperature | Unit -40–60 °C; transducer -40–80 °C |
| Humidity | 0–95% RH, non-condensing |
| Housing material | Aluminium alloy, CNC machined |
| Protection | Unit IP54; transducer IP68 |
| Cable length | 5 m standard, extendable to 20 m |
| Weight | Unit 0.82 kg; transducer 1.29 kg |
| Languages | English, Simplified Chinese, Traditional Chinese |
Applications
Temporary flow surveys, pump and valve testing, HVAC balancing, water treatment and waterworks, irrigation, chemical and industrial process water, energy audits, commissioning and verification — any spot measurement where a portable, high-accuracy clamp-on meter is needed.
Wholesale & OEM
YS-Flux supplies ultrasonic flow meters in volume for export and wholesale distribution, and provides complete OEM / private-label manufacturing: custom logo and branding, neutral or customized packaging and color boxes, tailored manuals and labeling, and configurable specifications to match your market. Distributors and brand owners are welcome to request a quote for bulk pricing and OEM options — see our OEM services.
Request a Quote
This is an inquiry-based (RFQ) product. Tell us your pipe size, fluid, temperature, required outputs and quantity, and our engineers will recommend the right configuration. Request a Quote →
