Description

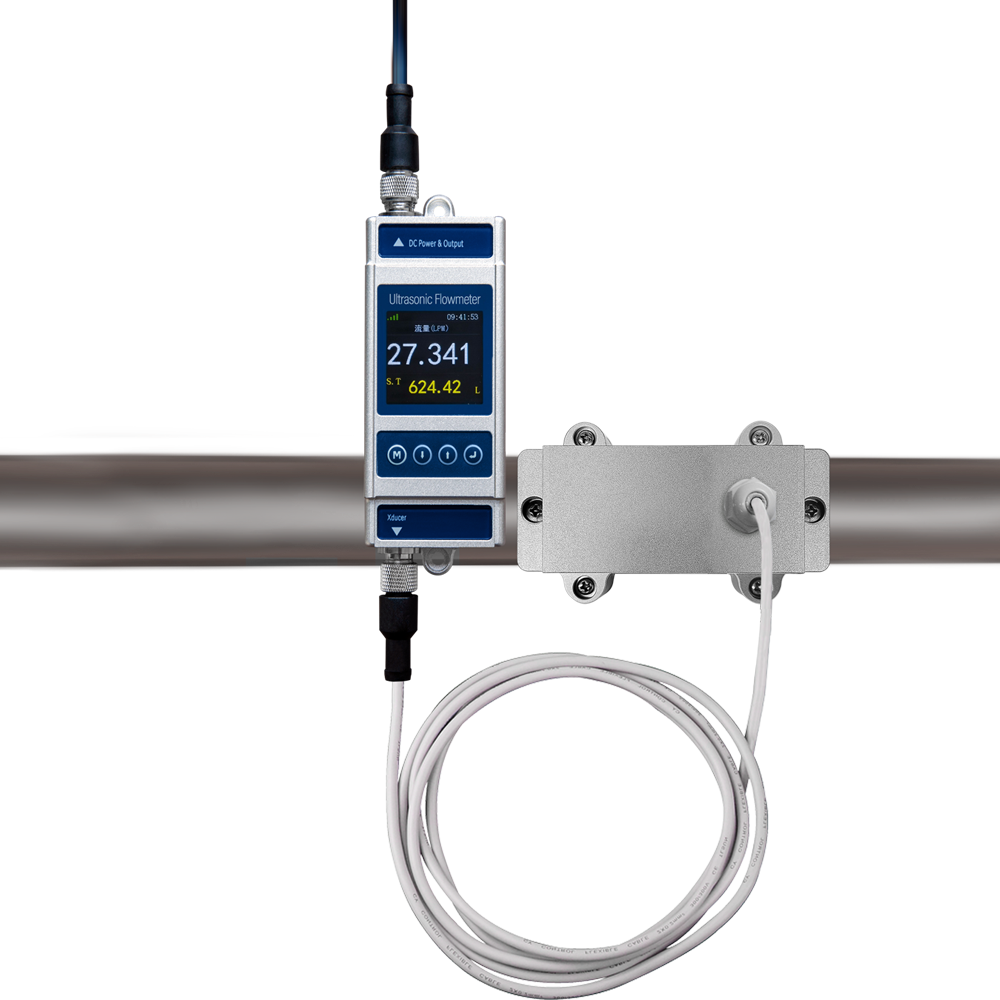

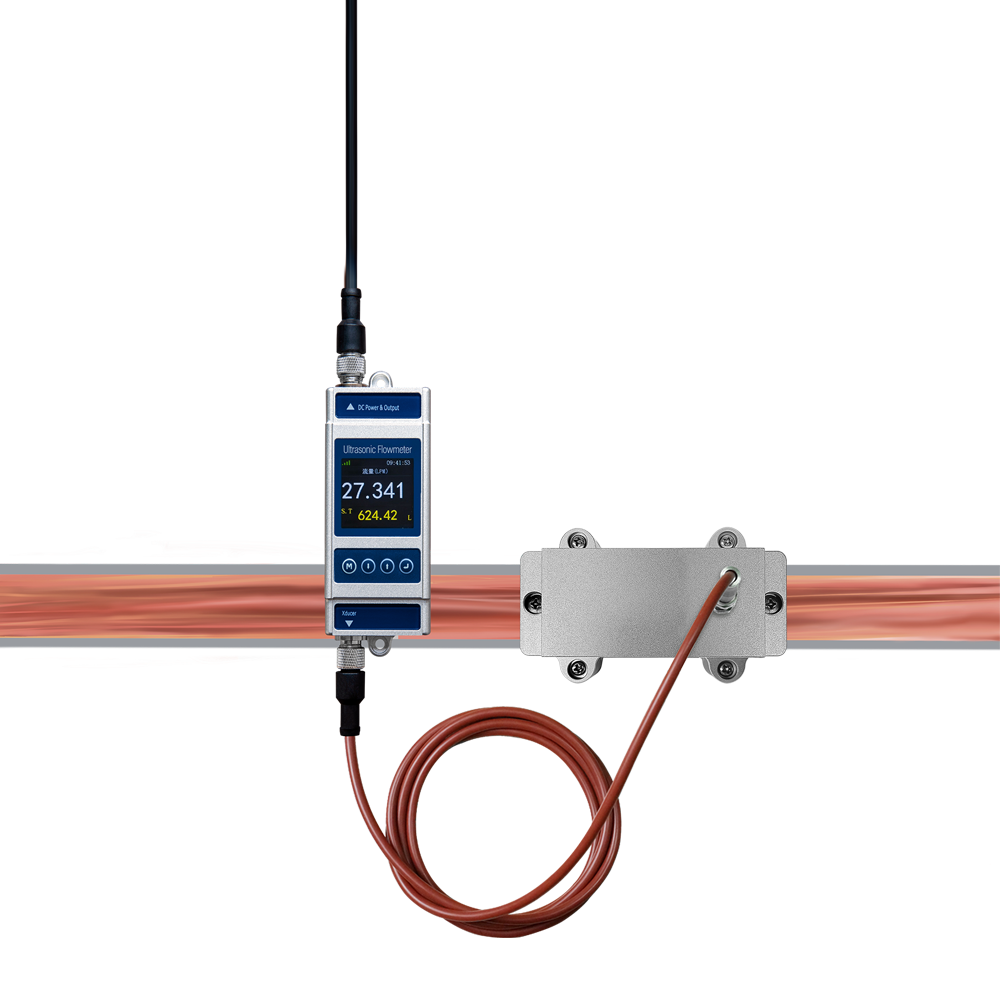

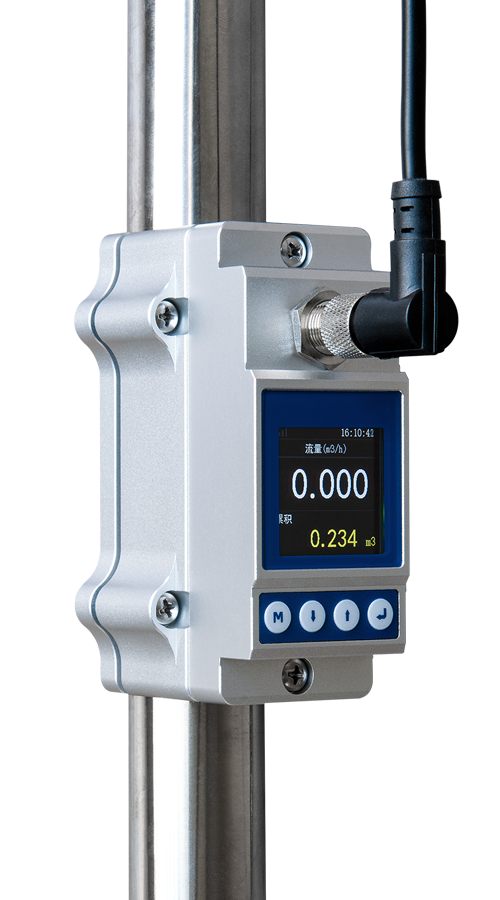

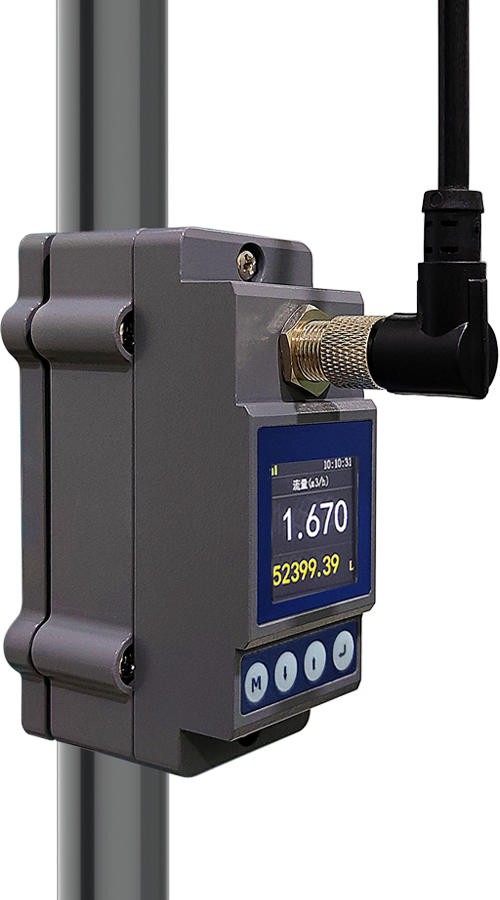

The YF-C3M is a rugged compact clamp-on ultrasonic flow meter built for demanding small-pipe and high-temperature industrial lines. Using the transit-time principle, the transducers clamp onto the outside of the pipe — no cutting, no welding, no shutdown and no pressure loss — so installation takes minutes on a live process.
It measures pipes from φ9.5 to φ110 mm (DN6–DN100), handles media temperatures up to 120 °C, and is rated IP65 for wet and dusty plant environments. The aluminium-alloy body with PTFE (Teflon) outer coating resists corrosion, while 4–20 mA, RS485 and OCT outputs connect directly to PLC, SCADA and data-logging systems.
Key Features
- Compact clamp-on transit-time meter, tool-free installation
- Small-pipe range φ9.5–φ110 mm (DN6–DN100)
- Medium temperature 0–120 °C for hot process lines
- IP65 protection for wet / dusty industrial sites
- Aluminium-alloy body with PTFE anti-corrosion coating
- 4–20 mA analog, RS485 (Modbus) and OCT pulse outputs
- Non-intrusive — no pressure drop, no moving parts
Specifications
| Principle | Transit-time ultrasonic, clamp-on |
|---|---|
| Accuracy | ±2% (0.3–5.0 m/s) |
| Flow rate range | 0.1–5.0 m/s |
| Pipe diameter | φ9.53–φ110 mm (DN6–DN100) |
| Body material | Aluminium alloy, outer PTFE (Teflon) coating |
| Medium temperature | 0–120 °C |
| Display units | m³/h, LPM and more (default m³/h) |
| Power supply | 24 VDC @ 80 mA |
| Analog output | 4–20 mA |
| Communication | RS485 |
| Pulse output | OCT |
| Protection | IP65 |
| Installation | Clamp-on (universal clamp) |
| Cable length | 2.0 m standard, extendable to 20 m |
Applications
Hot and chilled water, chemical and dosing lines, cooling circuits, HVAC, boiler and heat-exchanger monitoring, industrial process water, and any small-to-medium pipe where a non-intrusive, high-temperature meter is required.
Wholesale & OEM
YS-Flux supplies ultrasonic flow meters in volume for export and wholesale distribution, and provides complete OEM / private-label manufacturing: custom logo and branding, neutral or customized packaging and color boxes, tailored manuals and labeling, and configurable specifications to match your market. Distributors and brand owners are welcome to request a quote for bulk pricing and OEM options — see our OEM services.
Request a Quote
This is an inquiry-based (RFQ) product. Tell us your pipe size, fluid, temperature, required outputs and quantity, and our engineers will recommend the right configuration. Request a Quote →
